Home /Products/Stainless Steel Pressure Tank/High Pressure Lpg Storage Vessel Carbon Steel Lpg Storage Tank With Best Quality

High Pressure Lpg Storage Vessel Carbon Steel Lpg Storage Tank With Best Quality

1 Set
MOQ
$17,500.00(1 - 3 Sets) $16,500.00(4 - 9 Sets) $15,500.00(>=10 Sets)
Price
High Pressure Lpg Storage Vessel Carbon Steel Lpg Storage Tank With Best Quality
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 3 Years
Core Components: Pressure Vessel, Pump
Dimension(L*W*H): 2438mm*2591mm*6058mm
Capacity: 5000L -20000L, 20000L,21000L,22000L
Weight: 34000
Volume (m³): 50M3 / 80M3 / 100M3/120M3
Inner Material: Q345R, Q345R
Outer Material: Carbon Steel, 16MnDR
Design Pressure(MPa): 2.11 MPa
Max Working Pressure(MPa): 2.11 MPa
Design Standard: ASME, PED, Customers' Demands
Working Temperature(℃): -196 - -50 ℃
Warranty: 3 Years
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Other
Showroom Location: Egypt, Brazil, Spain, Bangladesh
Production Standard: GB150.ASME.European Standard.
Design Pressure: 2.11Mpa
Working Pressure: 2.11Mpa
Working Temperature: -196 - 50 ℃
Volume: 50M3 / 80M3 / 100M3/120M3
Application: Lpg Storage
Basic Infomation
Payment & Shipping Terms
Product Description
Product Description

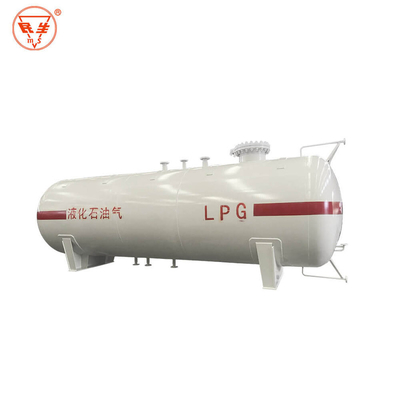

High Pressure Vessel Carbon Steel Lpg Storage Tank With Best Quality

The volumes of the storage tanks are mainly from 5cbm to 200cbm. The working medium includes LPG, ammonia, ether, etc. The
materials could be carbon steel, aluminum, stainless steel, etc.
The basic equipment includes manhole, joint for safety valve, exit for air discharge, joint for liquid indicator, liquid inlet,
gas phase equilibrium mouth, liquid phase outlet, liquid discharge, etc.
The optional equipment includes liquid indicator, safety valve, temperature gauge, pressure meter, etc.
For the safe usage of the LPG products, we process several test for the LPG tanks such as welding line density test, thermal
treatment, hydra press measurement, ray nondestructive test, etc
1. Medium: liquid oxygen tank, liquid nitrogen tank, liquid argon tank, liquid Nitrous Oxide tank, liquid carbon dioxide tank,
LNG tank.
2. Tank capacity: 2M3~350M3.
3. Tank pressure: 8bar, 16bar or based on user requirement.
4. Tank product certificate: GB, ASME, CE
5. Type: Vertical/Horizontal
6. Insulating mode: vacuum perlite powder and super vacuum multi-layer
Mode
Vol M3
Working pressure
evaporation per day %/d
Weight
Size
MPa
LO2
LN2
Lar
Kg
(mm)
MS-2/0.8
2
0.8
≤0.67
≤1.0
≤0.7
2530
Φ1912×3295
MS-3/0.8
3
0.8
≤0.6
≤0.900
≤0.630
2972
Φ1912×3948
MS-5/0.8
5
0.8
≤0.435
≤0.650
≤0.460
3862
Φ1912×5196
MS-5/1.6
1.6
4813
Φ1912×5740
MS-10/0.8
10
0.8
≤0.360
≤0.550
≤0.380
6500
Φ2216×6600
MS-10/1.6
1.6
6500
Φ2216×6600
MS-15/0.8
15
0.8
≤0.350
≤0.530
≤0.370
8450
Φ2316×8166
MS-15/1.6
1.6
9020
Φ2316×8166
MS-20/0.8
20
0.8
≤0.330
≤0.500
≤0.350
10240
Φ2216×11558
MS-20/1.6
1.6
10240
Φ2216×11558
MS-30/0.8
30
0.8
≤0.290
≤0.440
≤0.310
13770
Φ2616×11128
MS-30/1.6
1.6
≤0.290
≤0.440
≤0.310
14812
Φ2616×11128
MS-50/0.8
50
0.8
≤0.23
≤0.35
≤0.240
21299
Φ3020×12818
MS-50/1.6
1.6
≤0.23
≤0.35
≤0.240
23889
Φ3020×12818
MS-100/0.8
100
0.8
≤0.160
≤0.250
≤0.170
41900
Φ3520×16887
Details Images
Product packaging
Related Products
Company Introduction
Our company was first established In 1966. We are specialized in designing and manufacturing non-standard pressure vessels of class A1, A2(high pressure), searnless cylinder of class B1,welded cylinder of class B2, special cylinders and motor vehicle cylinders of class B3, Valves, pressure pipe of class GB/GC, industrial anneal furnace, furnace roller, radiant tube etc. Over the years, our products are popular on the market.
With a registered capital of RMB 500million, it now has 319 engineers and technical staff. Granted by State General Administration Of The people's Republic of China For Quality Supervision And Inspection And Quarantine, Minsheng is awarded designing and manufacturing license of pressure vessels and gas cylinders in category A1, A2, B1, B2, B3, GB, GC. It is also awarded by ASME with U steel stamp and TPED certification by DNV. Besides, Minsheng also has the qualified certificates of import and export, enterprise credit rating AAA, measuring guarantee, 1S09001,1S014001, 1S018001 and other assurance certification.

Our Services & Strength

We will reply your enquiry in 24 hours working time.
We are dedicated to providing the best service to global cuetomers with patience and enthusiasm.
Certifications
Customer Photos
FAQ
Question1. How to ensure your cylinders quality?
A: Our LPG cylinder factory possesses ISO9001 certificate, and we have been in this field more than 50 years.
Our products have been sold almost all over the world, especially with the mature market.

Question2 About the brand name of the products?
A: In general, We use our own brand, if you have requested, OEM is also available.

Question3 About the sample?
In our acceptable range, we can offer a sample by charging freight. We will return the fee after you make an order.

Question4 About payment term and delivery time?
A: payment term: 50% for TT,50% TT before delivery
we can delivery 1*40HQ containers and below within 7 days after deposit payment.

Question5 About Production capacity?
A: 4000,000 pieces of cylinders could be produced in one year, and our monthly capacity is 300,000 pieces.
